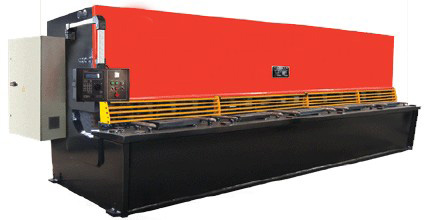

QC12K数控摆式剪板机
数控摆式剪板机性能与特点:
· 液压传动、摆式刀架。机架整体焊接坚固耐用,使用氮气缸回程,平稳迅速。
· 具有无级调节行程的功能,上下刀片刃口间隙量用手柄调节,刀片间隙均匀快速易调。
· 防护栅与电器连锁确保操作安全。
· 数控系统与位置编码器组成闭环控制系统,速度快、精度高、稳定性好、能保证后挡料位移尺寸的精度,
同时数控系统具有精度补偿功能及自动检测的多种附加功能。
· 主要技术参数:
机床型号 | 可剪板厚mm | 可剪板宽mm | 剪切角 | 行程次数 | 后挡料范围mm | 主电机功率KW |
QC12K-4×2500 | 4 | 2500 | 1°30' | 18 | 20-600 | 4 |
QC12K-4×3200 | 4 | 3200 | 1°30' | 18 | 20-600 | 7.5 |
QC12K-4×4000 | 4 | 4000 | 1°30' | 12 | 20-600 | 7.5 |
QC12K-4×6000 | 4 | 6000 | 1°30' | 7 | 20-800 | 11 |
QC12K-6×2500 | 6 | 2500 | 1°30' | 18 | 20-600 | 7.5 |
QC12K-6×3200 | 6 | 3200 | 1°30' | 14 | 20-600 | 7.5 |
QC12K-6×4000 | 6 | 4000 | 1°30' | 12 | 20-600 | 7.5 |
QC12K-6×6000 | 6 | 6000 | 1°30' | 7 | 20-800 | 11 |
QC12K-8×2500 | 8 | 2500 | 1°30' | 14 | 20-600 | 11 |
QC12K-8×3200 | 8 | 3200 | 1°30' | 10 | 20-600 | 11 |
QC12K-8×4000 | 8 | 4000 | 1°30' | 8 | 20-600 | 11 |
QC12K-12×2500 | 12 | 2500 | 2° | 10 | 20-600 | 15 |
QC12K-12×3200 | 12 | 3200 | 2° | 9 | 20-600 | 15 |
QC12K-12×4000 | 12 | 4000 | 2° | 8 | 20-600 | 18.5 |
QC12K-12×6000 | 12 | 6000 | 2° | 6 | 20-600 | 18.5 |
QC12K-16×2500 | 16 | 2500 | 2° | 8 | 20-800 | 18.5 |
QC12K-16×3200 | 16 | 3200 | 2° | 7 | 20-600 | 18.5 |
QC12K-16×4000 | 16 | 4000 | 2° | 5 | 20-600 | 18.5 |
QC12K-20×2500 | 20 | 2500 | 2°30' | 7 | 20-800 | 22 |
QC12K-20×3200 | 20 | 3200 | 2°30' | 6 | 20-800 | 22 |
QC12K-20×4000 | 20 | 4000 | 2°30' | 5 | 20-800 | 22 |
QC12K-25×2000 | 25 | 2000 | 3° | 8 | 20-800 | 37 |
QC12K-25×2500 | 25 | 2500 | 3° | 6 | 20-800 | 37 |
QC12K-25×3200 | 25 | 2500 | 3° | 5 | 20-800 | 37 |
QC12K-25×4000 | 25 | 4000 | 3° | 4 | 20-800 | 37 |
QC12K-32×2500 | 32 | 2500 | 3° | 4 | 20-1000 | 45 |
QC12K-32×3200 | 30 | 3200 | 3° | 4 | 20-1000 | 45 |
QC12K-40×2500 | 40 | 2500 | 3° | 4 | 20-1000 | 55 |
